Fill in the form with your required tube size, color, specification and application. As a professional manufacturer, OUTOU supports custom design, sample order and bulk discount. Send your inquiry now to get the best price and fast delivery solution.
High‑precision FZ‑T polyester and FM‑T polyether polyurethane pneumatic tubes manufactured with Japanese extrusion technology. ±0.05mm tolerance. SGS & ROHS certified. OEM supported.

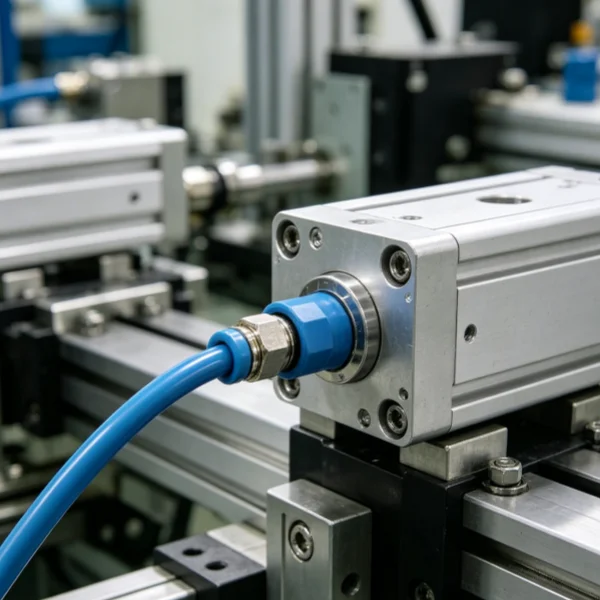

Designed for industrial automation, machinery and pneumatic control systems, our FZ‑T (Polyester TPU) and FM‑T (Polyether TPU) series deliver excellent flexibility, pressure resistance and dimensional stability.
✅ High Precision Tolerance ±0.05–0.15mm
✅ Small Bend Radius for Compact Installation
✅ SGS & ROHS Certified
✅ OEM & Custom Colors Available
Founded in 2008, OUTOU® integrates Japanese tube extrusion technology with advanced online diameter control systems to ensure stable quality and round cross‑section consistency.
Each PU tube is manufactured using branded 95A TPU material and controlled extrusion parameters to guarantee:
This technical control ensures reliable pneumatic transmission performance across industrial environments.
| Model | FZ0425 | FZ0604 | FZ0805 | FZ0855 | FZ1065 | FZ1208 | FZ1410 | FZ1612 |
| Metric Size | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| OD (mm) | 4 | 6 | 8 | 8 | 10 | 12 | 14 | 16 |
| ID (mm) | 2.5 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 12 |
| Min Bend Radius (mm) | 10 | 15 | 20 | 22 | 27 | 35 | 56 | 60 |
| Coil Length (m) | 200 | 200 | 100 | 100 | 100 | 100 | 100 | 100 |
Working Pressure: ≤0.8 MPa
Tolerance: ±0.05–0.15mm
Hardness: 95A
Temperature Range:
Every extrusion maintains a perfectly circular cross‑section to ensure proper fitting connection and air sealing reliability.
Online diameter control system ensures tolerance within ±0.05–0.15mm, reducing leakage risk and improving connector compatibility.
Minimum bend radius as low as 10mm, ideal for compact automation systems.
Stable TPU formulation prevents surface wax exudation, maintaining clean appearance and long‑term flexibility.
Optimized material formulation ensures softness without compromising pressure performance.
We partner with you every step, delivering tailored solutions that drive growth, efficiency, and lasting agricultural success.
Solution: Stable wall thickness and controlled extrusion reduce weak points.
Solution: ±0.05mm precision tolerance ensures connector compatibility.
Solution: High‑grade 95A TPU formulation ensures long‑term elasticity.
Each production batch undergoes:
Certified by:
Japanese extrusion methodology ensures consistency across production lots.
Important Usage Notes
Improper use may lead to pressure reduction, cracking or rupture.
We support:
MOQ: 3000 meters or ≥100KG per order
Custom mold development available for special requirements.
